Flanged Bushing

Tychon, Inc., produces precision high-quality, high-performance components that comply with Mil-spec, SAE and other industry standards.

FLANGED BUSHING

Achieving excellence starts with customer service.

At Tychon, Inc., precision machining is one of our most powerful capabilities, and we have a strong background in producing complex machined components for this market. Our equipment resources include CNC machining centers capable of upholding a high degree of accuracy. Our machine shop features well-maintained turning equipment that is rigid, stable and accurate enough to successfully accomplish hard

Manufactured for a customer in the amusement park industry, the flanged bushing highlighted here is an example of the kind of components we machine to close manufacturing tolerances. It is constructed from 660 Bronze, an alloy characterized by its high strength, good anti-friction properties, and resistance to impact, wear, and corrosion. This part featured thin walled sections, so our challenge was to choose the most appropriate cutting tools and adjust the machining parameters to repeatably uphold dimensional accuracy. Another important aspect of this job was to create a 32 micro finish on the machined surfaces.

At Tychon, Inc., precision machining is one of our most powerful capabilities, and we have a strong background in producing complex machined components for this market. Our equipment resources include CNC machining centers capable of upholding a high degree of accuracy. A technically skilled operator with hands-on knowledge of advanced manufacturing processes turned this part on one of our CNC lathes. We performed dimensional and visual inspections to confirm that part accuracy and the surface quality complied with the customer specification.

As finished, this part featured dimensions of 3.00” in diameter x 1.750” in length. By using machining equipment geared for precision cutting and paying attention to every detail, we upheld tolerances of ±.0005”. When this customer chose us to machine this component, they were confident that it would be delivered on time and exhibit an exceptional level of quality. As a reliable machining company, we delivered on our commitment. To learn more about this project or our machining capabilities, contact us today.

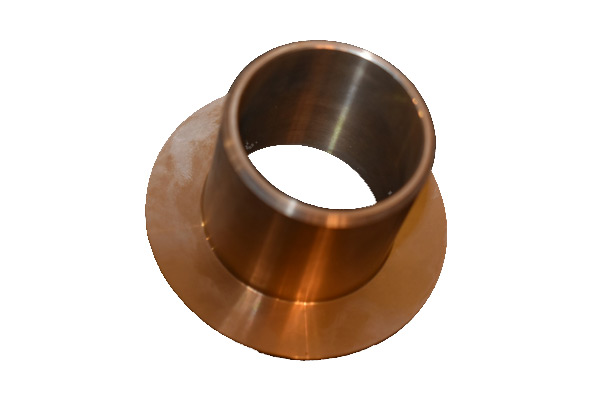

bushing-large

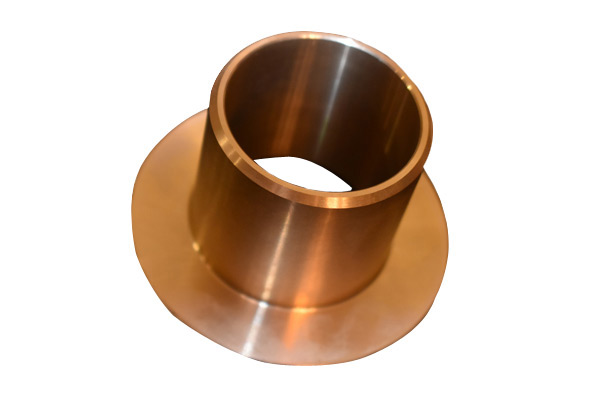

flange-bushing-large

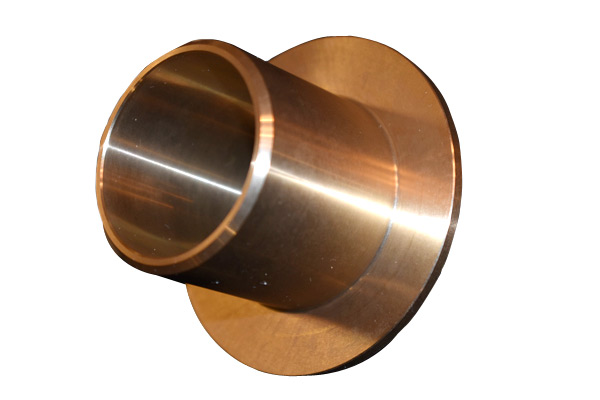

machined-flanged-bushing-large

FLANGED BUSHING HIGHLIGHTS

Project Name & Description

Flanged Bushing

Capabilities Applied/Processes

Turning

Equipment Used to Manufacture Part

CNC Lathe

Overall Part Dimensions

3.00″ Dia. X 1.750″

Tightest Tolerances

(+/-) .0005

Material Used

Bronze 660 (C93200)

Material Finish

32 micro finish

Industry for Use

Amusement Parks

In Process Testing/Inspection Performed

Visual

Volume

1

Standards Met

As per customer specifications
